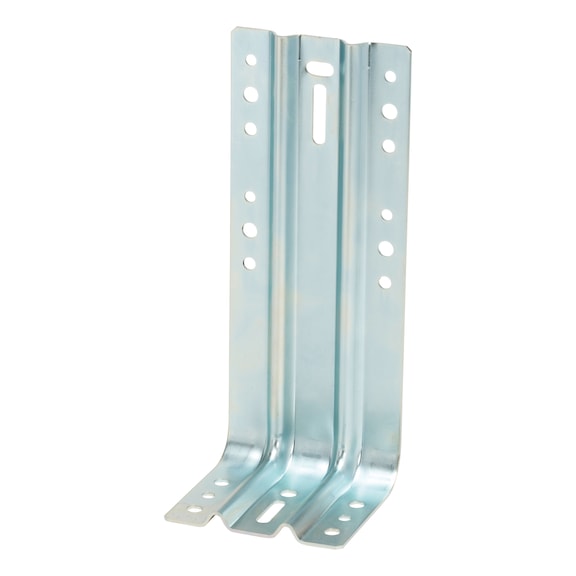

Window mounting bracket

Window installation angle steel zinc plated SG
WNDWMNTBRKT-SG-100X260X106X2

Art.-no. 0479732126

EAN 4056807445441

All versions

Individual price display after login

Window mounting bracket

Art.-no. 0479732126

Individual price display after login

Quantity

PU

x 1 pcs

Show availability in Würth shop

Exclusively for trade customers

Register now and access more than 125,000 products

Locate shop
Login/Register
Call customer service: 073 – 629 1911

For mounting ceiling-high window elements to the floor panel

Rigid, stable performance with continuous profiling

Adjustable bracket thanks to slots

Hole pattern allows for flexible mounting

Notice

When planning and mounting, note the guidelines for planning and executing the installation of windows and house doors (art. no. 5995 000 000).

When selecting and mounting suitable fasteners, note the properties of the fasteners.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

|

|

Application area

Rigid mounting bracket for mounting floor-to-ceiling window and door elements with false edges to the concrete floor panel

Instructions

Adjust, align and attach the window element.

Secure the window mounting bracket on the frame profile with suitable fasteners (e.g. spacing assembly screws AMO, pias drilling screws). Slots allow for retrospective adjustment.

Finally, secure the mounting bracket to the concrete floor panel with a suitable anchor (e.g. W-FAZ M8). When doing so, take the mounting properties of the anchor (e.g. edge spacing, bore diameter etc.) into account.

After the final alignment, the mounting bracket must always be secured to the frame profile and secured onto the floor panel via a fixed hole/anchor hole.


Length 2 (L2)	260 mm
Length (L1)	100 mm
Width (B)	106 mm
Material thickness (t)	2 mm
Material	Steel
Surface	Zinc plated
Dowel hole diameter (d1)	7.5 mm
Dowel hole diameter 2 (d2)	9 mm
Dowel hole diameter 3 (d3)	6.5 mm
Elongated hole width	7.5 mm

Additional accessory:

Product

Description

Quantity

PU

Price
/PU

pias<SUP>®</SUP> drilling screw, raised countersunk head with AW drive

pias® drilling screw, raised countersunk head with AW drive

SCR-DBIT-RSDCS-AW30-(A3K)-6,3X45

Art.-no. 020563 45

Zinc-plated steel, blue passivated (A3K). Raised countersunk head in flat design with AW drive

x 500 pcs

pias<SUP>®</SUP> drilling screw, raised countersunk head with AW drive

pias® drilling screw, raised countersunk head with AW drive

SCR-DBIT-RSDCS-AW30-(A3K)-6,3X50

Art.-no. 020563 50

Zinc-plated steel, blue passivated (A3K). Raised countersunk head in flat design with AW drive

x 500 pcs

Amo<SUP>® </SUP>III 7.5 type 3 window frame screw Half round head, zinc plated steel, blue passivated, RW 30 drive

Amo® III 7.5 type 3 window frame screw Half round head, zinc plated steel, blue passivated, RW 30 drive

SCR-PANHD-RW30-(A2K)-7,5X42

Art.-no. 023493042

With a large flat head that lies neatly against the frame and can be optimally covered with trim caps, this attachment is ideal for windows in concrete and solid block masonry

x 200 pcs

Amo<SUP>® </SUP>III 7.5 type 3 window frame screw Half round head, zinc plated steel, blue passivated, RW 30 drive

Amo® III 7.5 type 3 window frame screw Half round head, zinc plated steel, blue passivated, RW 30 drive

SCR-PANHD-RW30-(A2K)-7,5X52

Art.-no. 023493052

With a large flat head that lies neatly against the frame and can be optimally covered with trim caps, this attachment is ideal for windows in concrete and solid block masonry

x 200 pcs

Amo<SUP>® </SUP>III 7.5 type 3 window frame screw Half round head, zinc plated steel, blue passivated, RW 30 drive

Amo® III 7.5 type 3 window frame screw Half round head, zinc plated steel, blue passivated, RW 30 drive

SCR-PANHD-RW30-(A2K)-7,5X62

Art.-no. 023493062

With a large flat head that lies neatly against the frame and can be optimally covered with trim caps, this attachment is ideal for windows in concrete and solid block masonry

x 200 pcs

Amo<SUP>® </SUP>III 7.5 type 3 window frame screw Half round head, zinc plated steel, blue passivated, RW 30 drive

Amo® III 7.5 type 3 window frame screw Half round head, zinc plated steel, blue passivated, RW 30 drive

SCR-PANHD-RW30-(A2K)-7,5X72

Art.-no. 023493072

With a large flat head that lies neatly against the frame and can be optimally covered with trim caps, this attachment is ideal for windows in concrete and solid block masonry

x 200 pcs

Amo<SUP>® </SUP>III 7.5 type 3 window frame screw Half round head, zinc plated steel, blue passivated, RW 30 drive

Amo® III 7.5 type 3 window frame screw Half round head, zinc plated steel, blue passivated, RW 30 drive

SCR-PANHD-RW30-(A2K)-7,5X82

Art.-no. 023493082

With a large flat head that lies neatly against the frame and can be optimally covered with trim caps, this attachment is ideal for windows in concrete and solid block masonry

x 200 pcs

Fixanchor W-FAZ/S

Fixanchor W-FAZ/S

ANC-(W-FAZ/S)-(A2K)-10-21-M8X75

Art.-no. 5928208010

Bolt anchor for high loads in cracked and non-cracked concrete. Steel, zinc-plated

x 100 pcs

Fixanchor W-FAZ/S

Fixanchor W-FAZ/S

ANC-(W-FAZ/S-K)-(A2K)-11-M8X65

Art.-no. 5928258011

Bolt anchor for high loads in cracked and non-cracked concrete. Steel, zinc-plated

x 100 pcs

Concrete screw with hexagon head W-BS/S

Concrete screw with hexagon head W-BS/S

CONCSCR-(W-BS/S)-(A2K)-WS13-10-15-6X50

Art.-no. 5929126015

Highest loads and efficient installation. Ideal for fastening metal structures, zinc-plated steel

x 100 pcs

Concrete screw with hexagon head W-BS/S

Concrete screw with hexagon head W-BS/S

CONCSCR-(W-BS/S)-(A2K)-WS13-5-25-6X60

Art.-no. 5929126025

Highest loads and efficient installation. Ideal for fastening metal structures, zinc-plated steel

x 100 pcs
