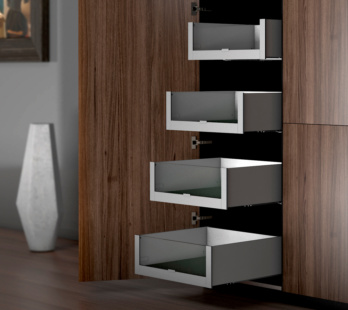

Vionaro Crystal inner panel
The images are examples. For detailed information, other images and documents, please select individual articles from the following table.
Vionaro Crystal inner panel
Narrow frame for large push-in components
Exclusively for trade customers
Register now and access more than 125,000 products
Variants
Exclusively for trade customers
Register now and access more than 125,000 products
- Can be used with H185 frame
- Low part complexity
- Simple installation
- No need to drill the push-in components
- Colour-matched to Vionaro
- Same dimensions as standard drawers (internal depth)
- For cutting to length
Application area
Instructions

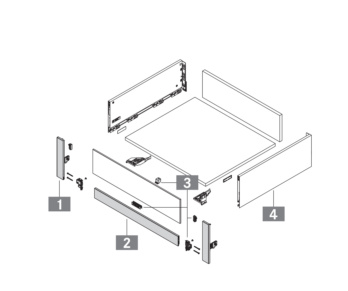

- 1.: Upright (front holder) for Crystal concealed drawer front. Set: with pre-assembled cover cap, front mount and front stabiliser, one each on left/right
- 2.: Cross profile for Crystal concealed drawer front
- 3.: Accessories Crystal concealed drawer front for inner extension H185. Set: 2 x profile adapters, 4 x profile screws, 2 x special screws, 2 x stabilisers, 2 x front floor connectors and 2 x spacers (used for push-in element height 121 mm)
