FLB-24-56-RGB LED light strip

LED light strip FLB-24-56 RGB
LGHTSTR-LED-(FLB-24-56)-RGB-5M

Art.-no. 0976522170
EAN 4099618592324
All versions

Prices for customers after login

Show availability in Würth shop
Exclusively for trade customers

Register now and access more than 125,000 products

For placement in notch, with homogeneous surface light and RGB colour change

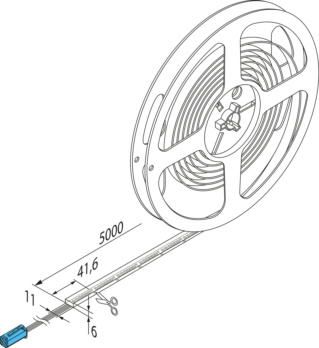

  • Easy mounting in a 6.5 mm wide and 11 mm deep milled groove

  • Minimum bending radius of only 25 mm

  • Homogeneous surface light, no visible light points

  • Light strip can be cut shorter in 41.67 mm increments, suitable separating points are marked on the sides

Dimensions subject to change. Subject to technical changes!

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Nominal voltage

24 V/DC

Power rating

14.4 W

Conditions for power rating

Per metre

Colour of light

RGB

Lamp type

SMD LED

Number of LEDs

720 PCS

Luminous flux

164 lm

Conditions for luminous flux

per metre

Length

5000 mm

Width

6.5 mm

Height

11 mm

Section length

41.67 mm

Max. length

5000 mm

Material

Plastic

Type of assembly

Groove mounting

Connection type

Plug-in system WPS-RGB

Cable length

2000 mm

Design

With connection line (on one side)

Energy efficiency class

G

Life time of illuminant

54000 h

IP protection class

IP 20

Protection class

Protection class III/safety extra-low voltage

Required accessory:

Product
Description
Quantity
PU
Price
/PU
EASYLUX LED transformer
EASYLUX LED transformer

TRAFO-EASYLUX-18W

For 12 V and 24 V lights
x 1 pcs
EASYLUX LED transformer
EASYLUX LED transformer

TRAFO-EASYLUX-36W

For 12 V and 24 V lights
x 1 pcs
EASYLUX LED transformer
EASYLUX LED transformer

TRAFO-EASYLUX-48W

For 12 V and 24 V lights
x 1 pcs
EASYLUX LED transformer
EASYLUX LED transformer

TRAFO-EASYLUX-60/72W

For 12 V and 24 V lights
x 1 pcs
EASYLUX LED transformer
EASYLUX LED transformer

TRAFO-EASYLUX-90W

For 12 V and 24 V lights
x 1 pcs
EASYLUX LED transformer
EASYLUX LED transformer

TRAFO-EASYLUX-120W

For 12 V and 24 V lights
x 1 pcs
Connection line for EASYLUX LED transformer
Connection line for EASYLUX LED transformer

CONLNE-DRIVER-EASYLUX-EUROPLUG-2M

For connecting the EASYLUX LED transformer to the mains
x 1 pcs
EASYLUX 24 V-3 control module
EASYLUX 24 V-3 control module

CTRLR-MODULE-EASYLUX-24V-3

For controlling LED RGB and 24 V multicolour lights on one channel with remote control
x 1 pcs
EASYLUX 24 V wireless remote control RGB
EASYLUX 24 V wireless remote control RGB

CTRLR-RR-CONTROL-EASYLUX-RGB-BLACK

Suitable for the EASYLUX 24 V-3 control module
x 1 pcs
EASYLUX 24 V wireless remote control RGB
EASYLUX 24 V wireless remote control RGB

CTRLR-RR-CONTROL-EASYLUX-RGB-WHITE

Suitable for the EASYLUX 24 V-3 control module
x 1 pcs
